Raspberry Pi NAS System
Mistry Siddh Lv4



We will be seeing a fully functional NAS server on Raspberry Pi(all pi version) homemade with simple few lines of command and with one software require before we start we will be requiring a few things before we start.


  • Laptop or Desktop
  • Stable internet connection(Mobile or Router no matter which connection is it)
  • Raspberry Pi with 4GB+ ram (mine is Raspberry Pi 4 B+ model with 8GB of ram)
  • MicroSD card with a minimum of 8GB size
  • Power supply (power bank or cell phone adaptor)
  • MicroB to HDMI with monitor(optional) if you’re going to use a monitor then you will be needing of keyboard
  • And most important thing a cup of coffee

Step 1 Hardware setup

Ok first of all we need some software which will help us to flash memory card so that we can install os in the memory card to boot in pi.

Raspberry pi software

Go to https://www.raspberrypi.com/software/ and download software according to your OS I’m using Zorin OS which is based on Ubuntu so I will be using the terminal. If you are using terminal use the following command

sudo apt install rpi-imager

as you can see in the below image I have already installed it on my device

Go ahead and open it up after opening it up plugin your 8GB or higher sd card on your laptop. as you can see in the image I have inserted 8GB of card

Now do the following steps as soon in the photo’s


Select Raspberry Pi OS(other)

Then select Raspberry Pi OS Lite (Legacy)


Now select your disk but before writing your os we will configure it first so that we don’t have to connect any kind of ethernet cable or mini Wi-Fi. Press ALT + SHIFT + X to open secret setting

Note: set your hostname and remember it we will be needing it later

Click on Yes and let it complete it. After that, you will be granted this message so it means that it is been completed.


Step 2

After that plug, it into pi and power it on, well as the pi is doing some process grab a cup of coffee and wait for a few minutes.

A few moments later

Open up your terminal and enter the following command

# as you remember I have told you to set your hostname in the software and remember it.
ssh [email protected]

Replace your hostname with the hostname you have set while preparing the sd card. In my case, I have set my hostname with datacenter so my command will be like this

ssh [email protected]

Pi Login

as soon as you hit enter it will as you for a conformation like this

~ ➤ ssh [email protected]
The authenticity of host 'datacenter.local (' can't be established.
ECDSA key fingerprint is SHA256:VlnqrEfP5pLc62h2TQbN0Z4pEudRsmRQL4+LqDD6ZB8.
Are you sure you want to continue connecting (yes/no/[fingerprint])?

answer it with yes after that it will as you for a password which we have set during the software installation. As you have given the password right then you will see that you have been login into your account successfully like I did.

Pi Login Successful

Congratulation we have been login successfully into our pi take a break grab a cup of coffee and relax.

Step 2 Software setup

As we successfully login into pi first we will update the repository as well as we will be upgrading it by the following command don’t worry if you haven’t used Linux in your life this will be your first experience as well as it will be really easy just follow my steps.

Update and Upgradation of packages

sudo apt update
sudo apt upgrade -y
sudo apt full-upgrade -y

The above command will update the repositories as well as it will be upgrading all the packages which are outdated so that we don’t get any kind of error while installing our NAS software. It will take a few minutes after all the process is completed we will check once again if there is any software that is left to upgrade by the following command.

sudo apt update && sudo apt list --upgradable

The following command will check whether any package is upgradable or not, if its all upgrade then it will return it with this message

Pi updated

Packages installation

Now we will be requirement few software for NAS to install without any error follow me

sudo apt install wget htop -y

These packages are preinstalled but in some cases, these packages are not been installed so we will be making sure that it’s installed.

Script installation

This script will not affect your network connection but if it did then I will leave a tutorial at the end of installation (Wi-Fi setup). Clear your terminal by using the clear command it will clear your terminal so that you can see it easily. Now past this script into the terminal so that installation start’s

wget https://github.com/OpenMediaVault-Plugin-Developers/installScript/raw/master/install
chmod +x install
sudo ./install -n

Sit back and relax until the process is been done till that time go ahead and give me a cup of coffee so that I can bring up various kinds of this topic so that you can enjoy it

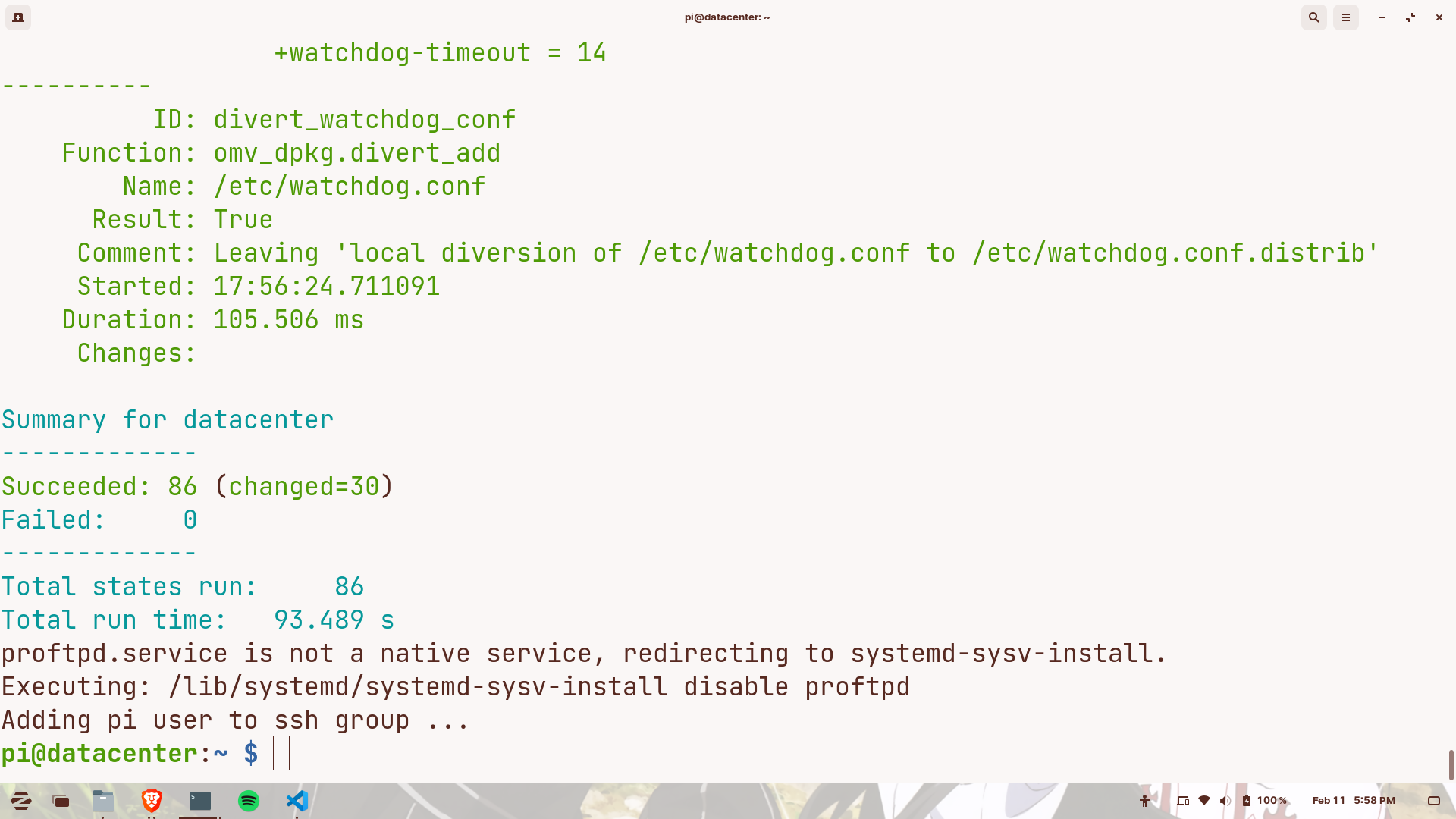

Install complate
Congratulation it’s been installed completed for our protection we will reboot our system with the following command sudo reboot.

Step 3 NAS setup on browser

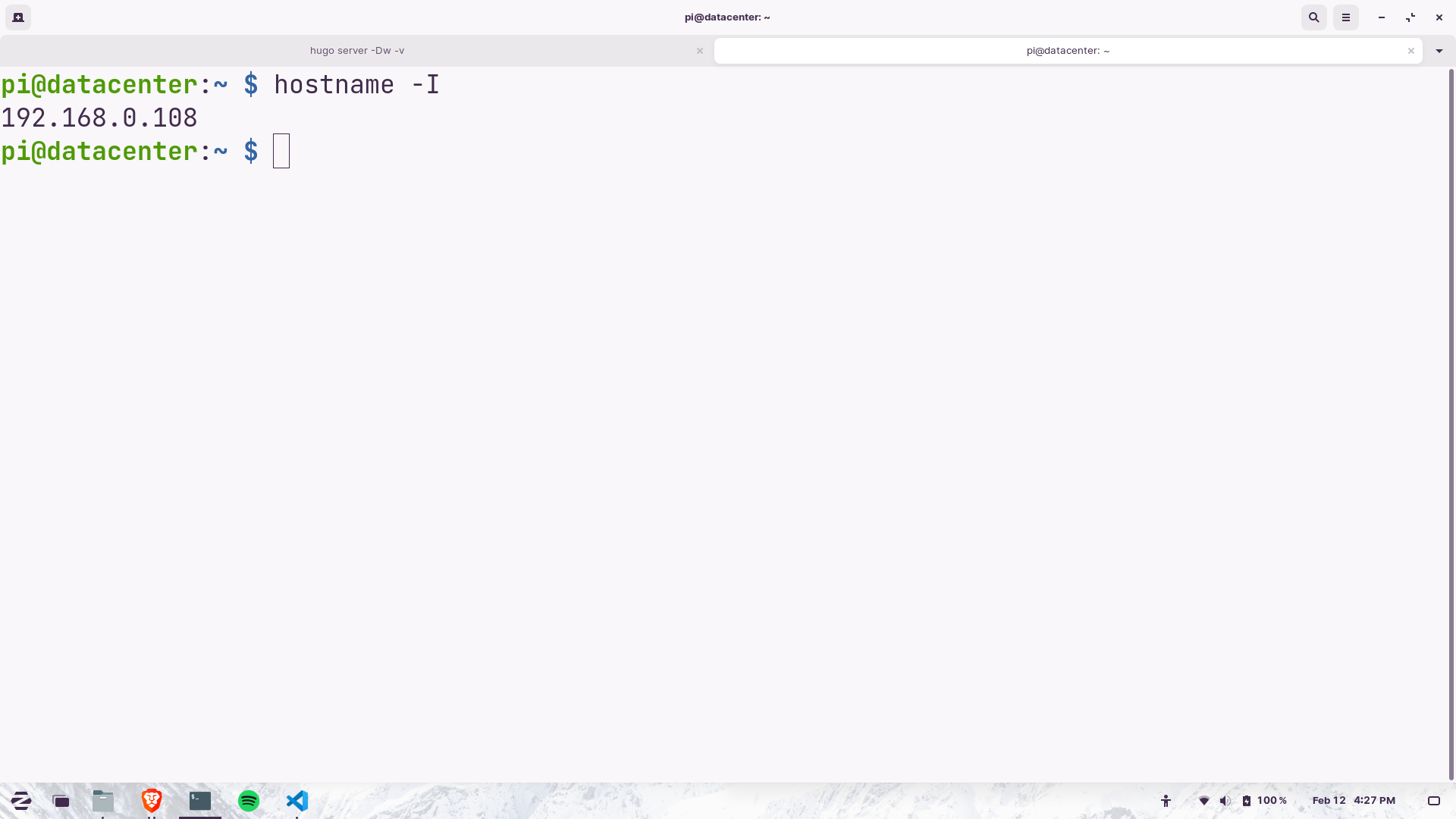

As in Step 2 Software setup we have installed once again we will be login into ssh account to check the IP address of our Pi use the following command to check the IP address

hostname -I

Finding IP address

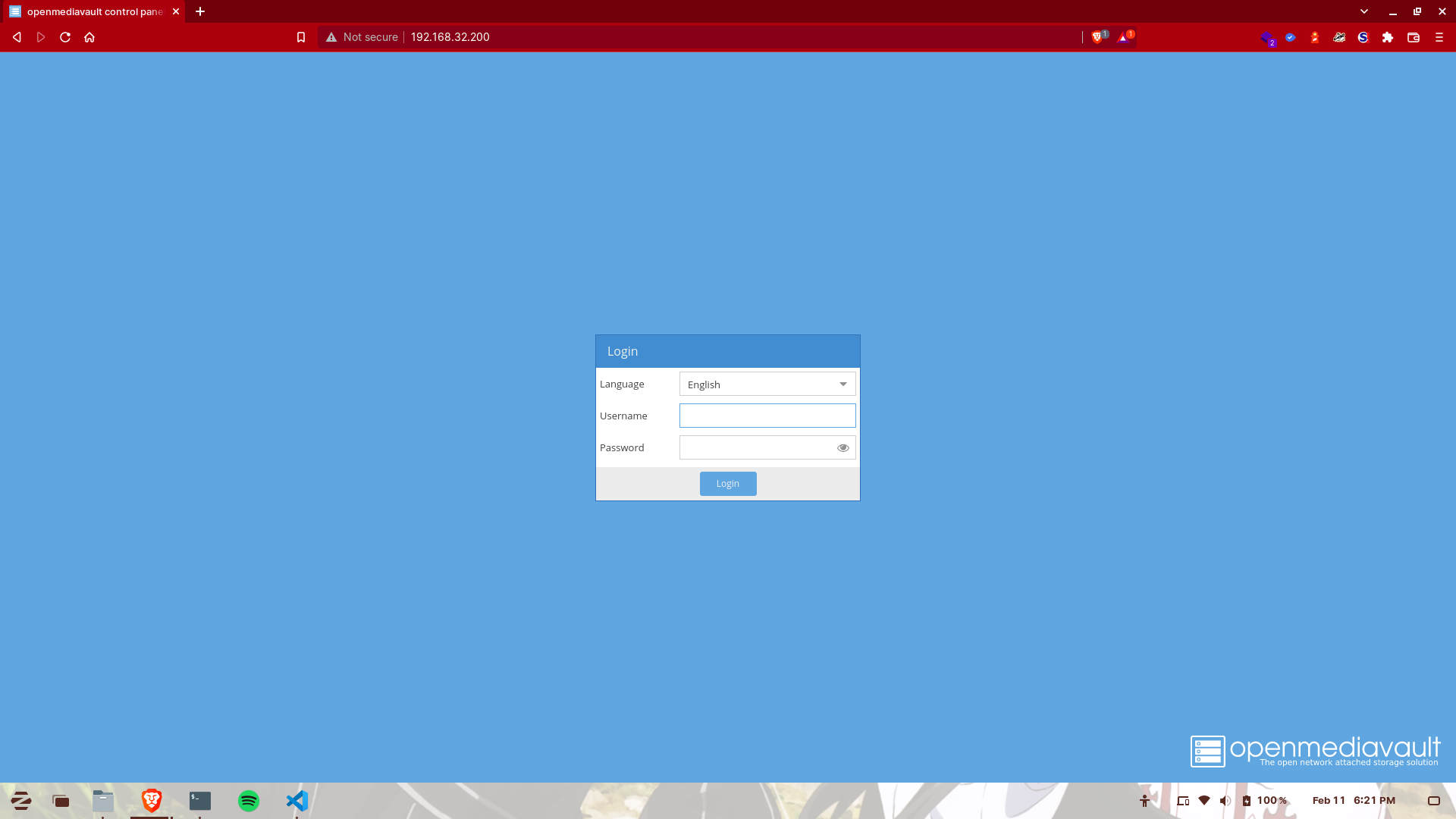

After finding your IP address use that IP address and open it in the browser with https://your_ip_address and it will grant you this page

Now now don’t be frightened of the login page because you don’t know the password and username well of course I also don’t know. Just joking type the following and it will let you in

username: admin
password: openmediavault

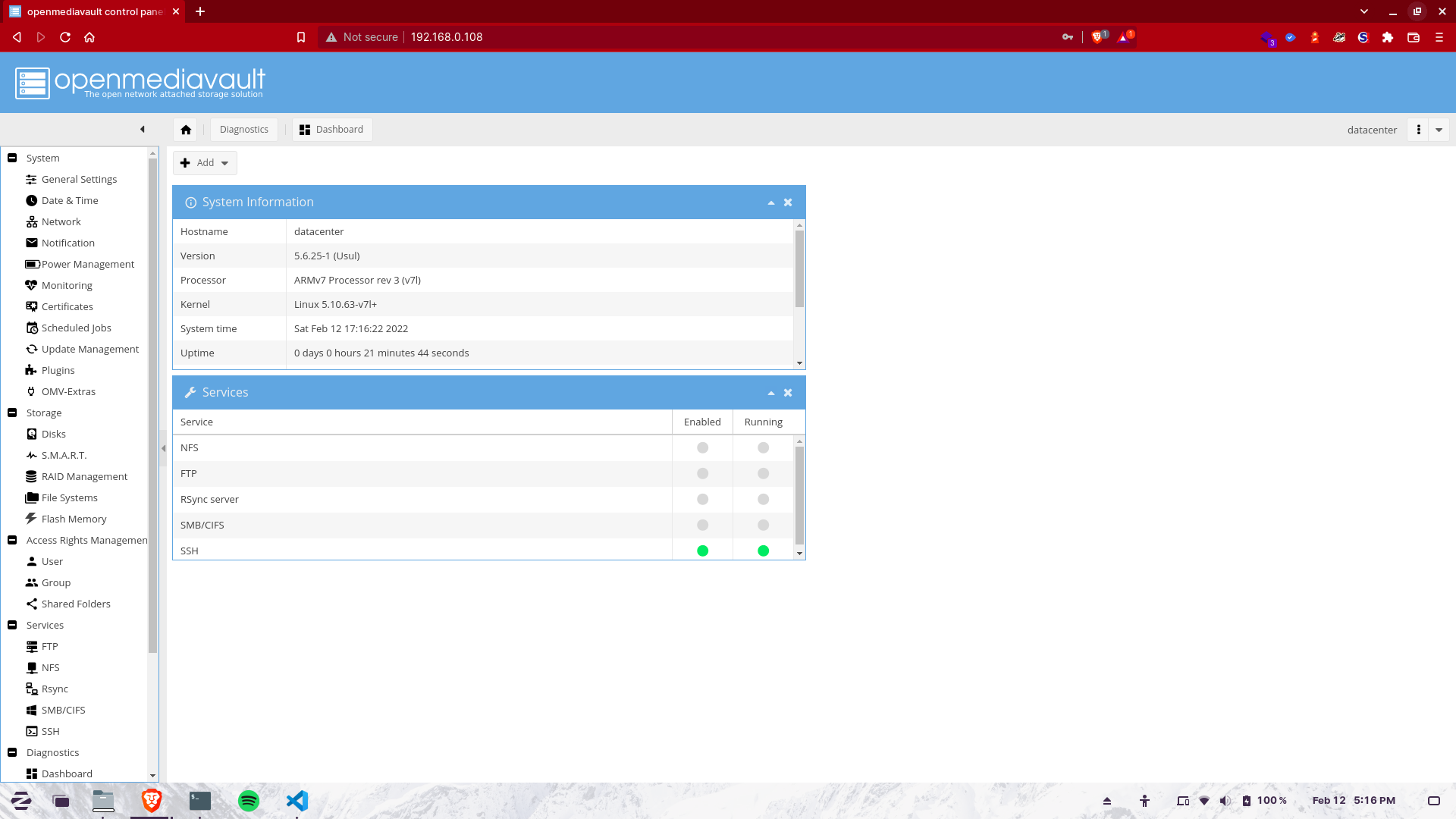

Congratulation you have successfully login, now before doing anything we will go ahead and change the password you will grant with this screen

Admin Panel

Changing admin panel password

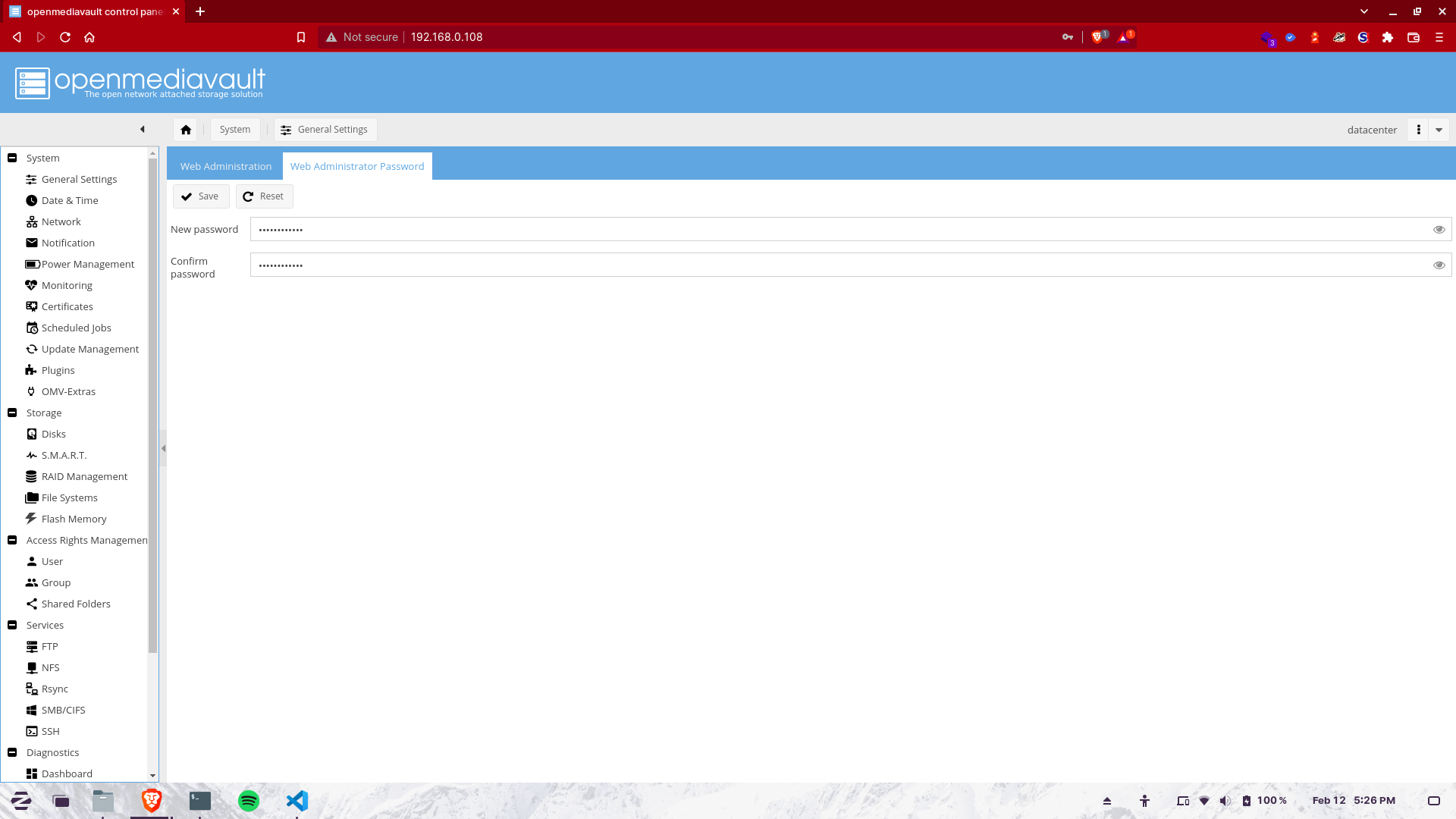

Go to System >> General Settings >> Click on Web Administrator Password then enter your new password after doing that we will plug in any kind of hard drive or some sort of memory storing device
Password Change

Storage setup

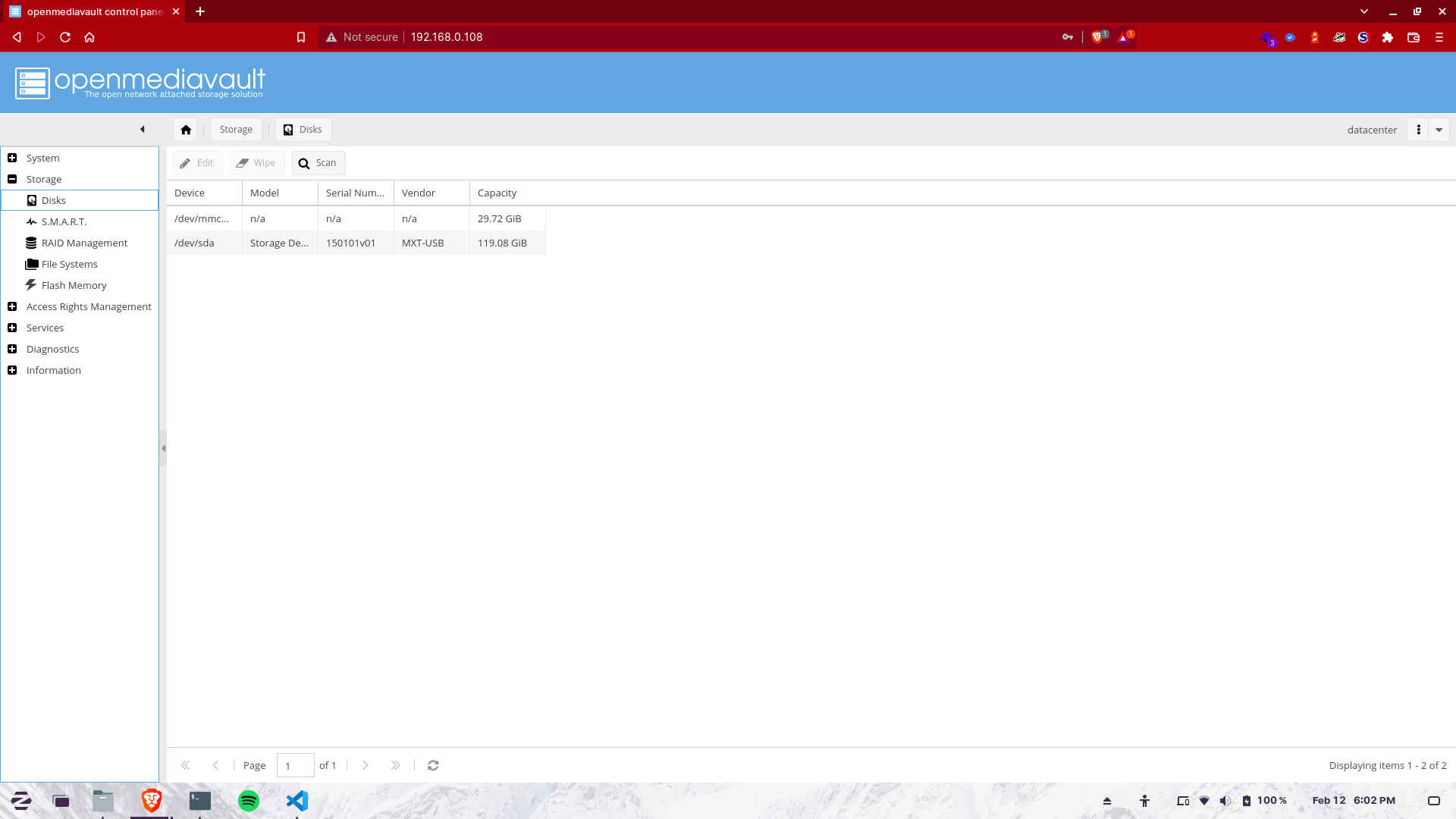

As we have inserted external storage head over to Storage >> Disk and there you will be able to see your storage mounted on pi in my case I have inserted 128GB of memory card for the testing purpose also I have a few files copied into it

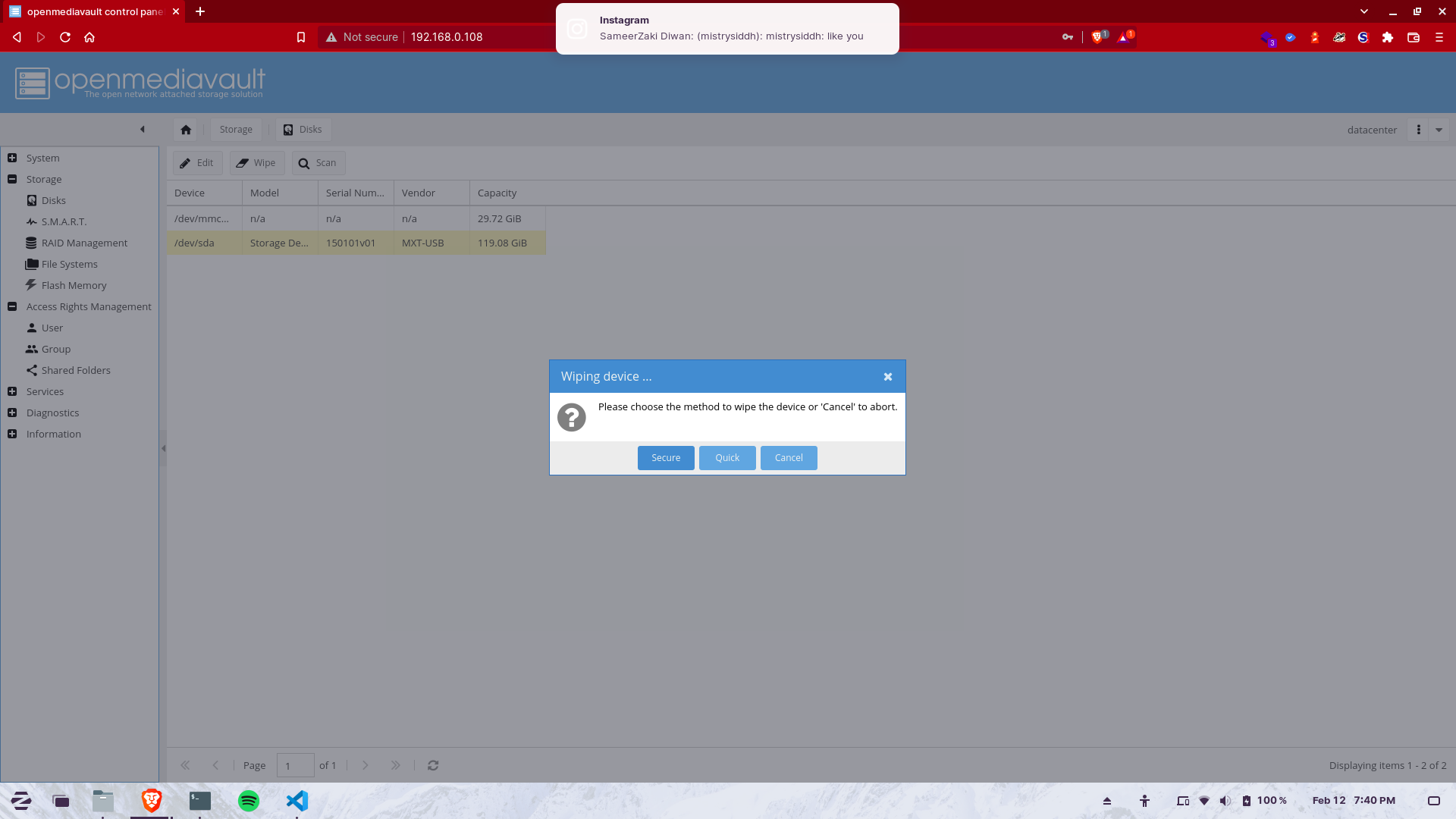

Select the disk and then click on Wipe

Disk Wipe

![Disk Wipe]

As we have confirmed that our storage is been mounted on our pi now we will make a shared folder so that we can access it from any device.

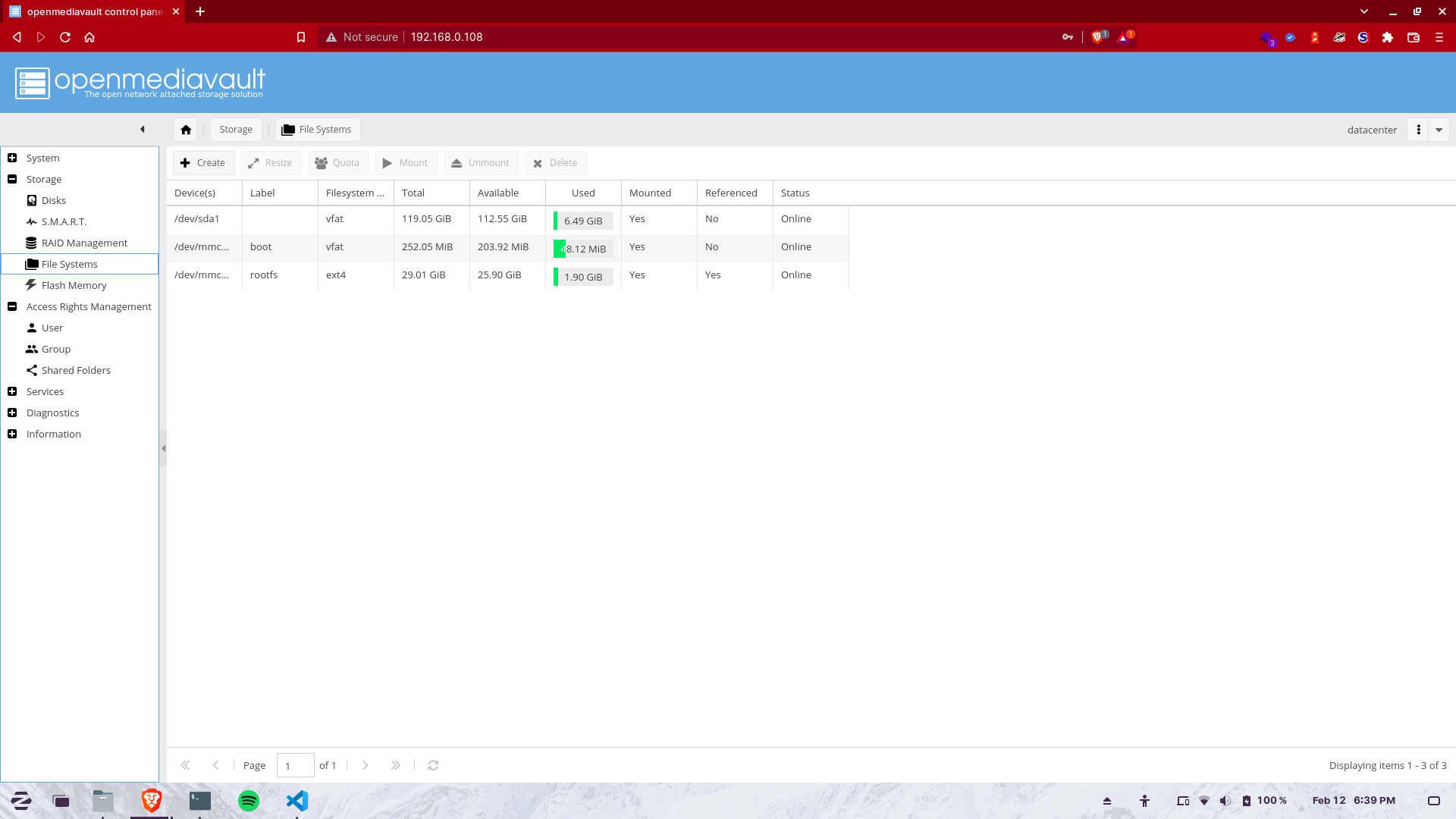

Storage Delete

Now select the quick option

Storage Delete

File System setup

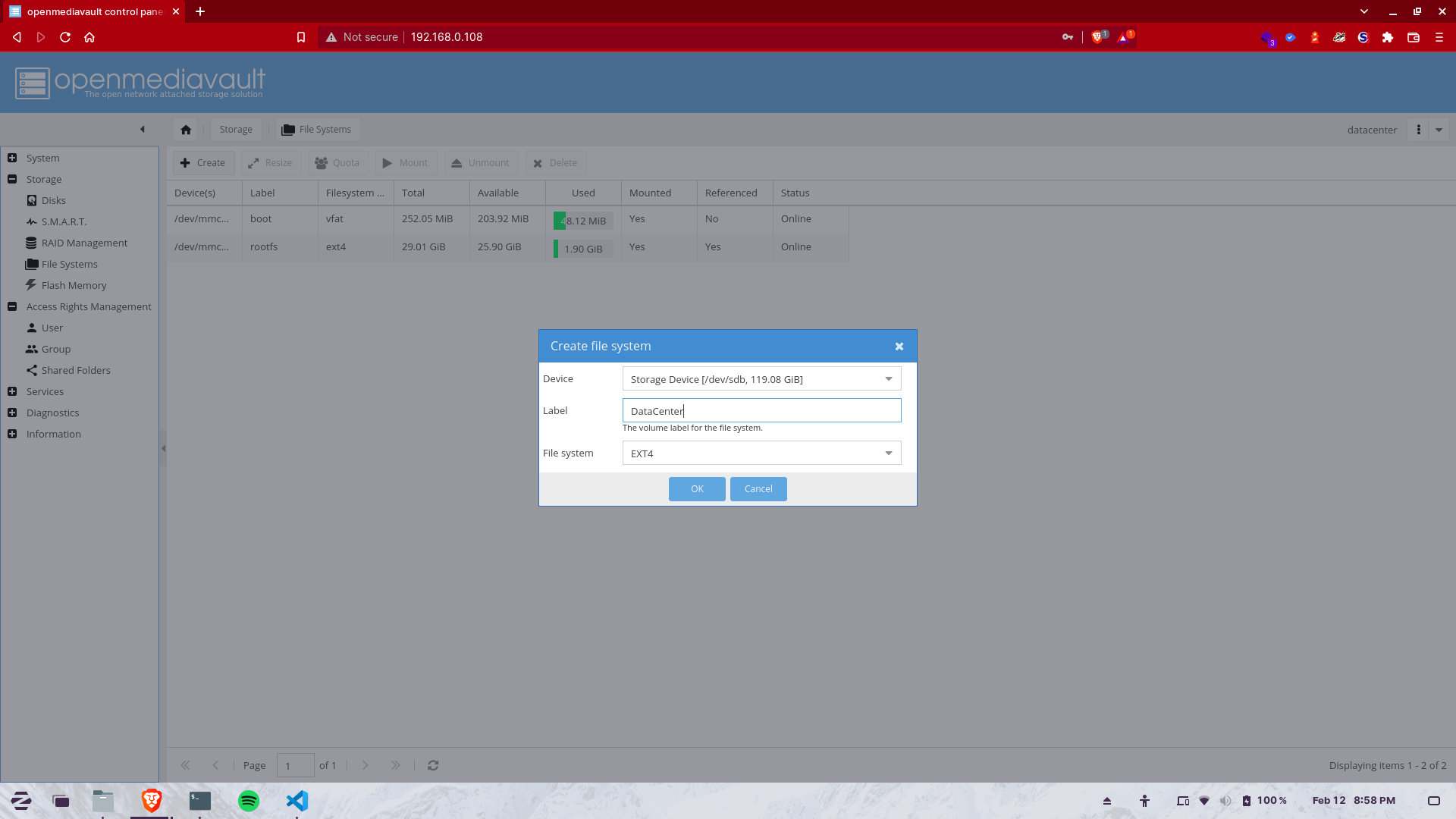

After wiping the data from the drive click on File System in the Storage section. Click on Add button and select Device and select the device and give it a label of your choice I will be giving it the name DataCenter, and make sure that you select EXT4 in File System.

Adding Device

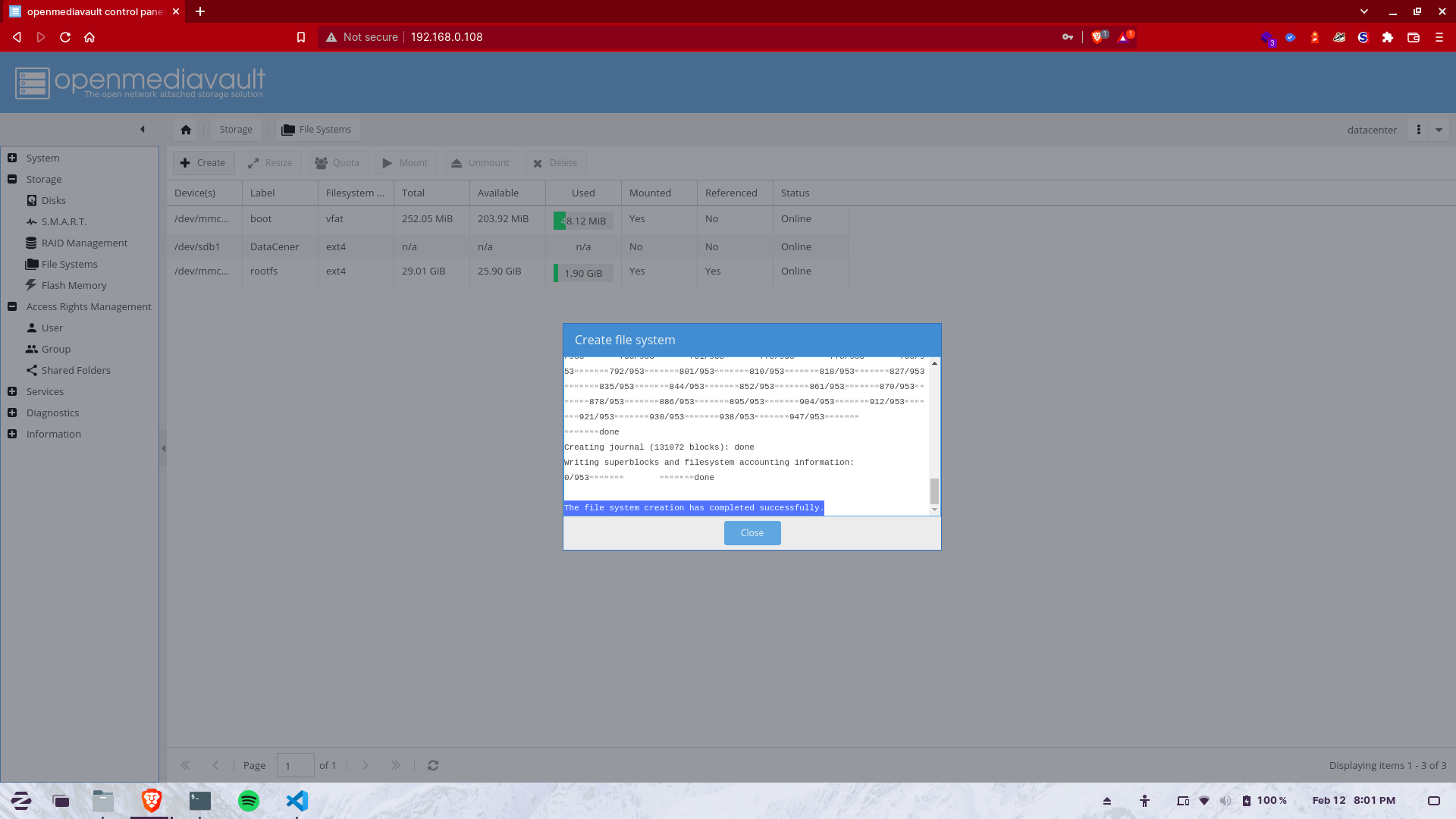

After hitting Yes to add device take a cup of coffee and wait for it

Adding Device Complete

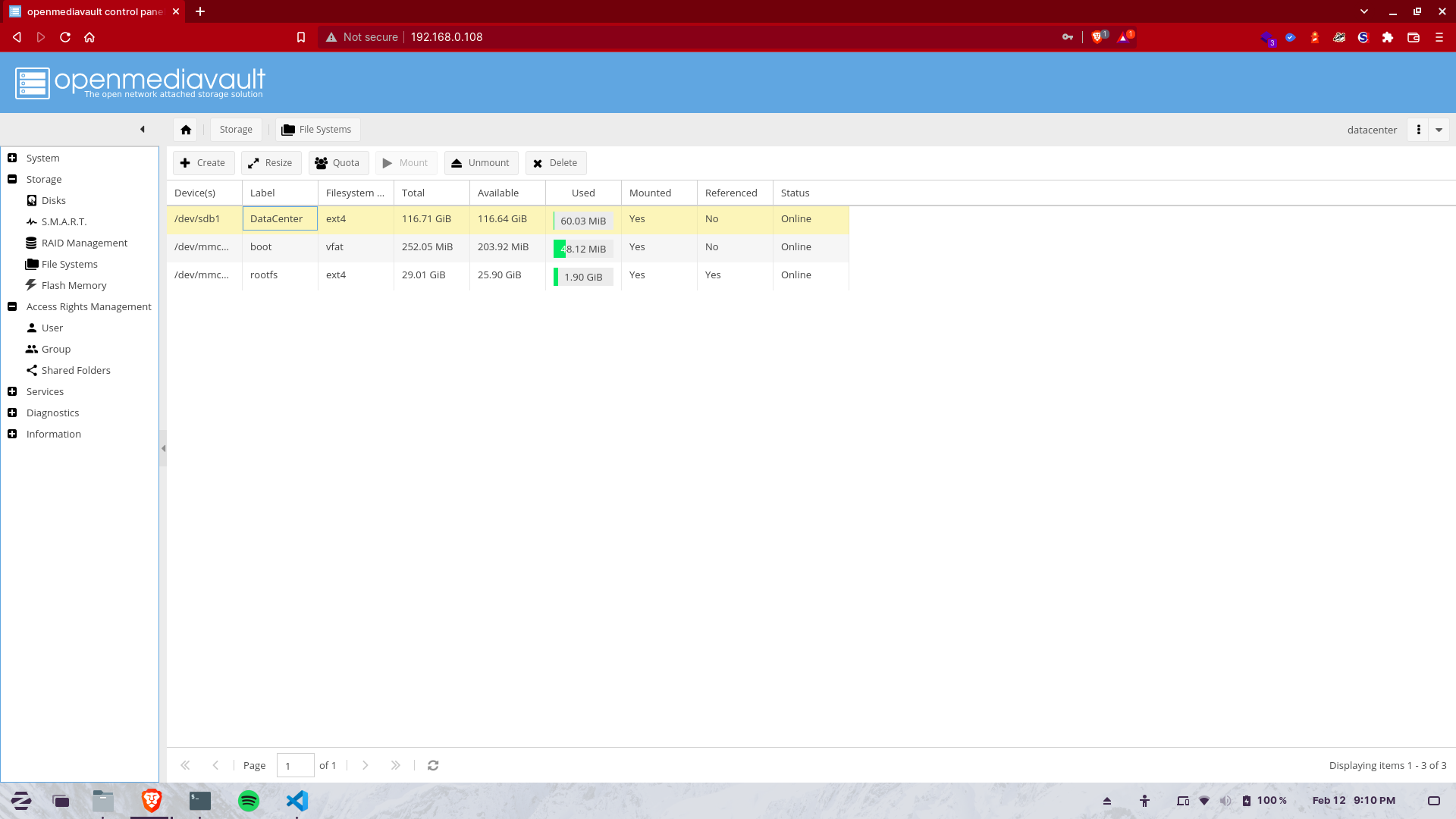

Select your device and click on the mount option to mount your device. A pop-up has been visible on the top just hit on the Apply button to apply changes so that to make sure that what are we going to make changes will work properly. It will take a few minutes to complete the process.

Sharing Folder setup

Folder Sharing
Now we will head to Sharing Folder Setup to set up our sharing folder. Go to Access Rights Management > Shared Folders when you will go there you will find it empty because we haven’t set up any sharing folder go ahead and hit that Add button without any thoughts.

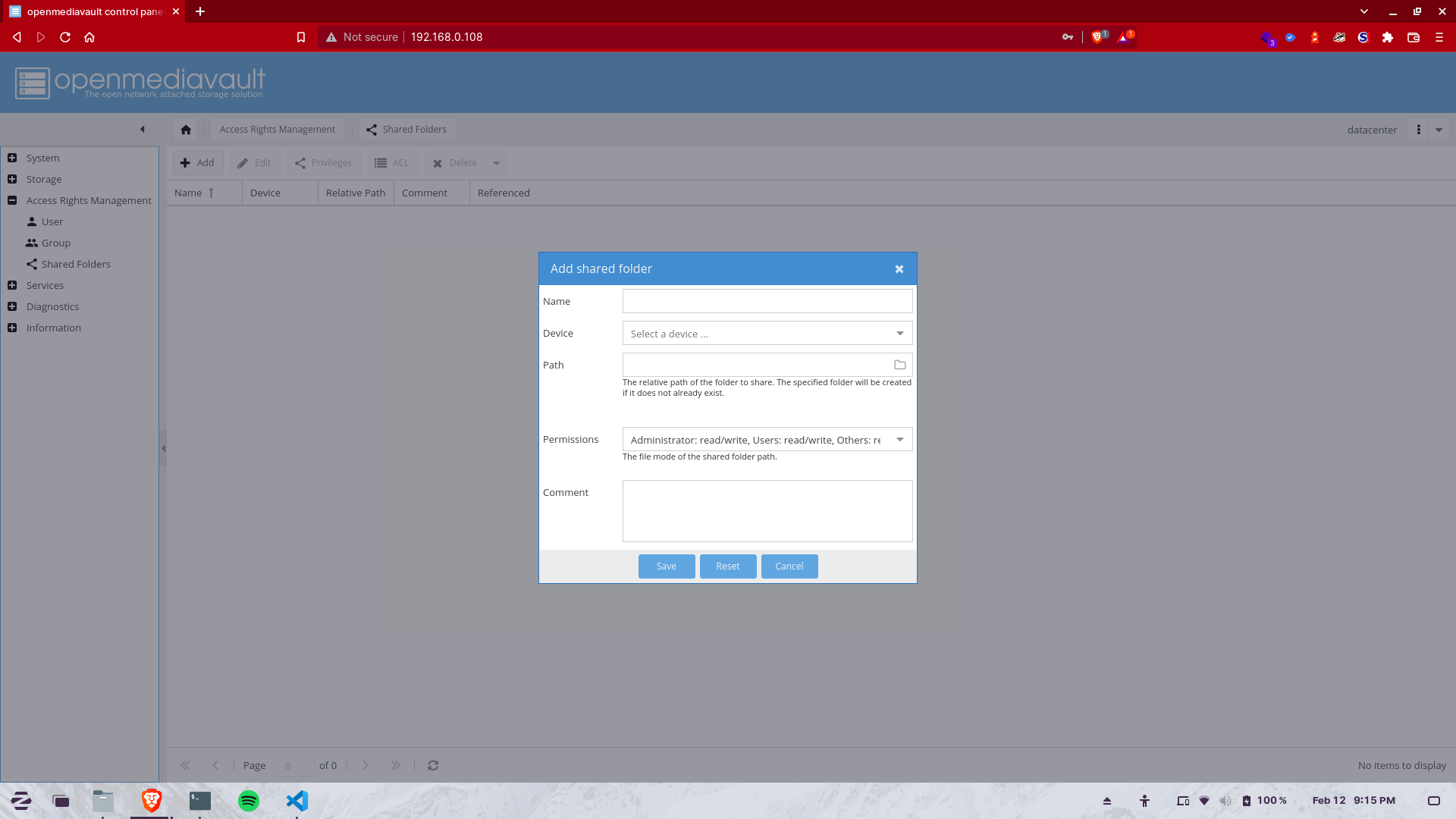

Folder Sharing Setup

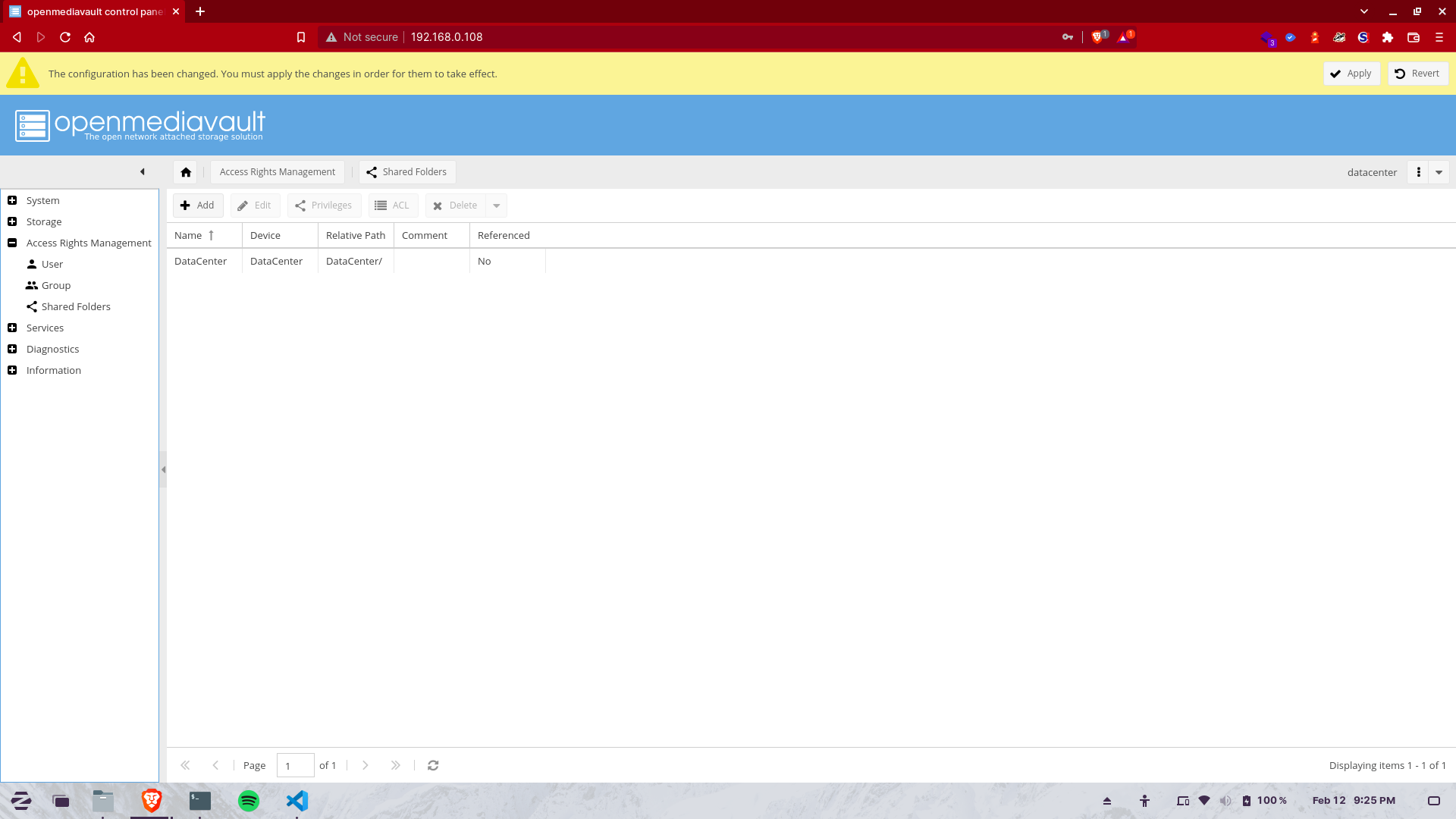

Fill in all the details according to your need and make sure to leave Permission as it is until and unless you know the purpose of it. I will be labeling it as DataCenter if you want to comment on that device then you can otherwise Save it, again you will see Apply button on the top right side of the screen as shown in the image below it will take a while to apply the changes.

Folder Sharing Setup

We will permit it so that we can Read/Write files into it. Select your newly created folder and click Privileges and give Read/Write to both pi users. Hit save and apply.

Services Setup

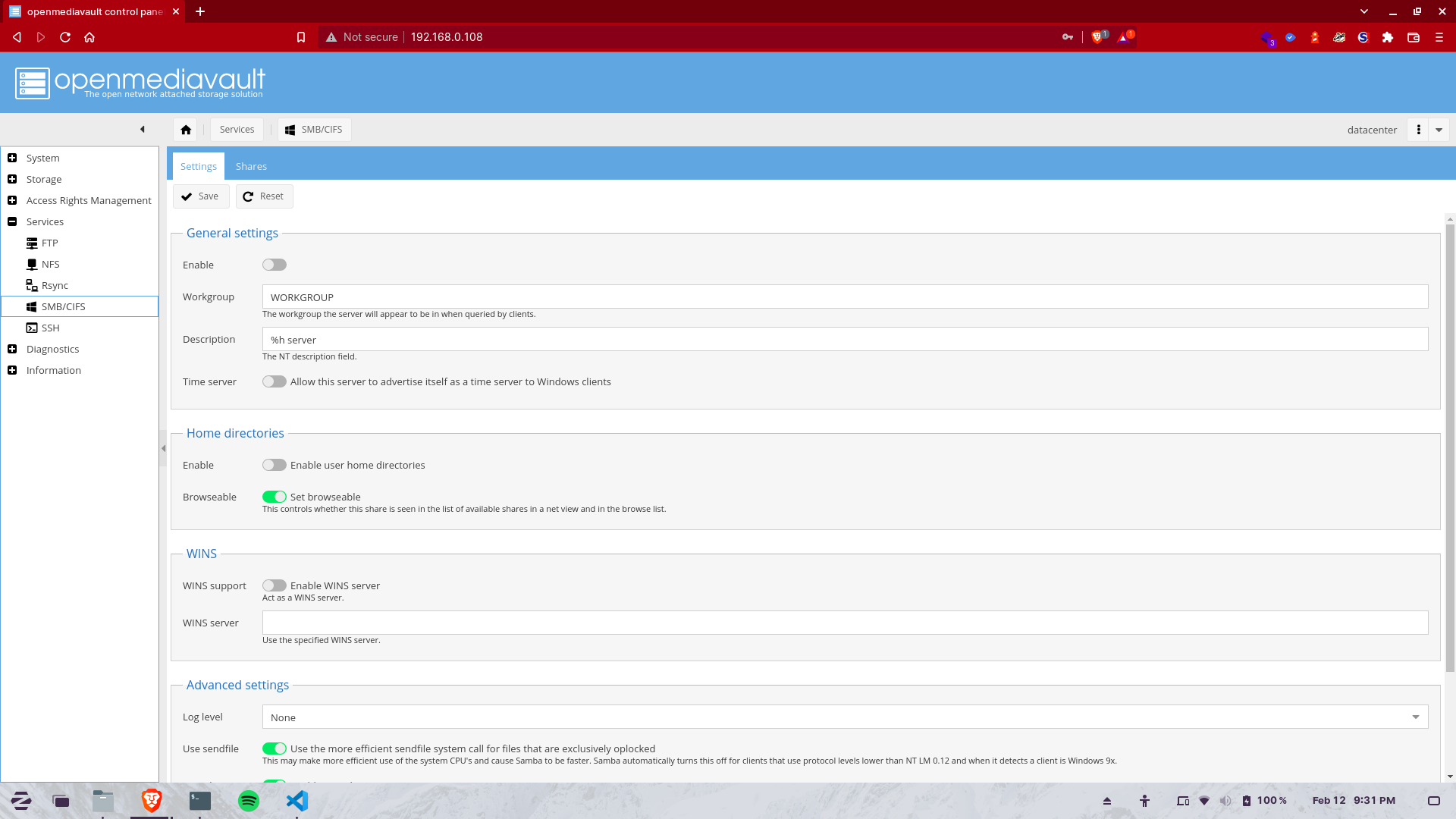

Go to the Services section and select SMB/CIFS as soon as you select it you will be granted a screen with soo many scary options but don’t worry we will be using only 2 options only. So go ahead and click sharing in the SMB/CIFS section.

Samba Service

Samba Service

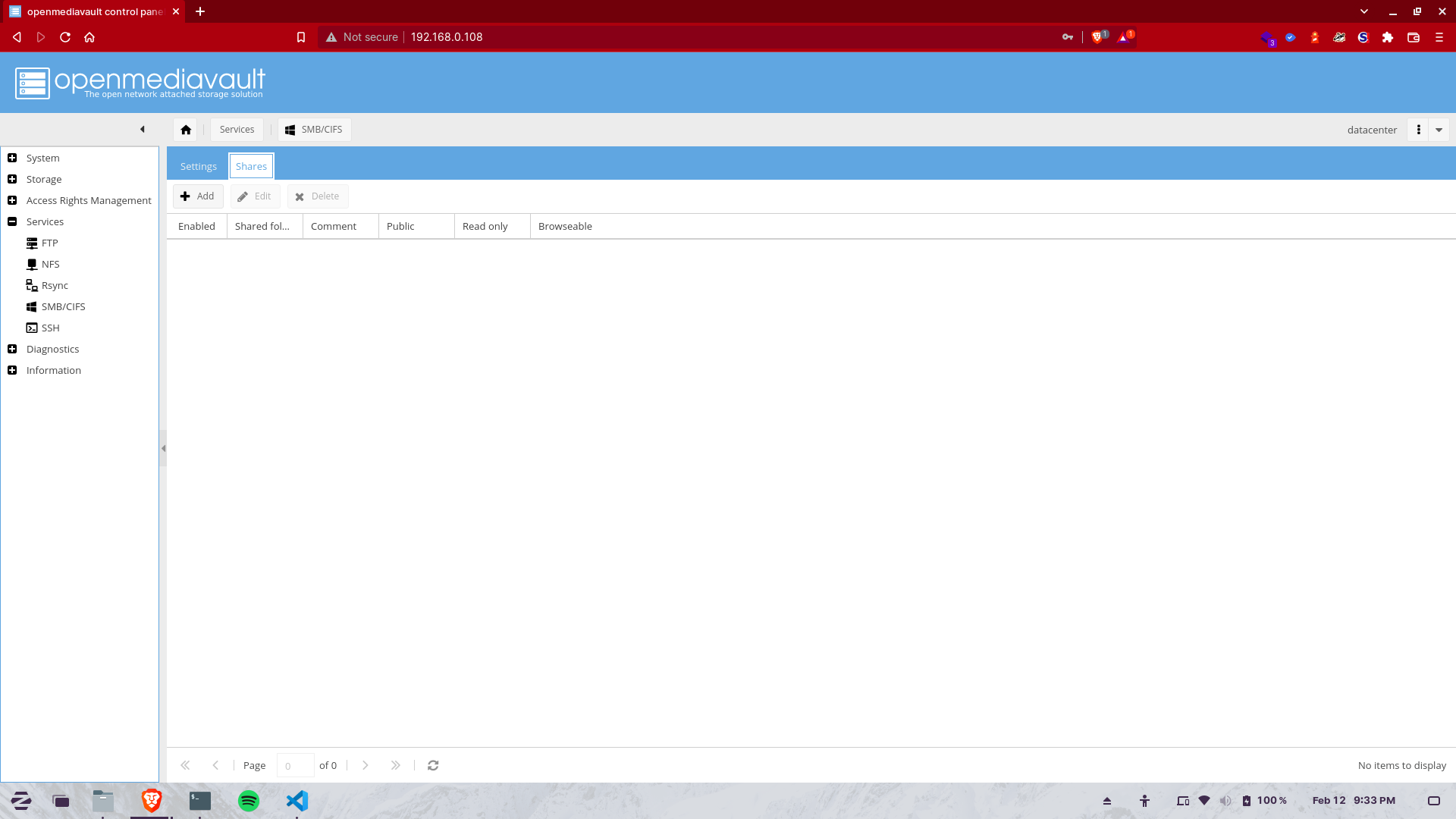

Go ahead click on the Add button select your shared folder which you have been created. Hit save and apply don’t change any other kind of options if your expert then only does it or else let it be as it is. Go back to the SMB/CIFS setting page and enable it. Hit save and apply. Take a cup of coffee and relax for a bit because we are coming to the most intrusting part which is accessing it from our devices.

Accessing our NAS

Before we move on `Windows User` please see the above video to enable `SMB`, as I'm on Ubuntu I can directly access it

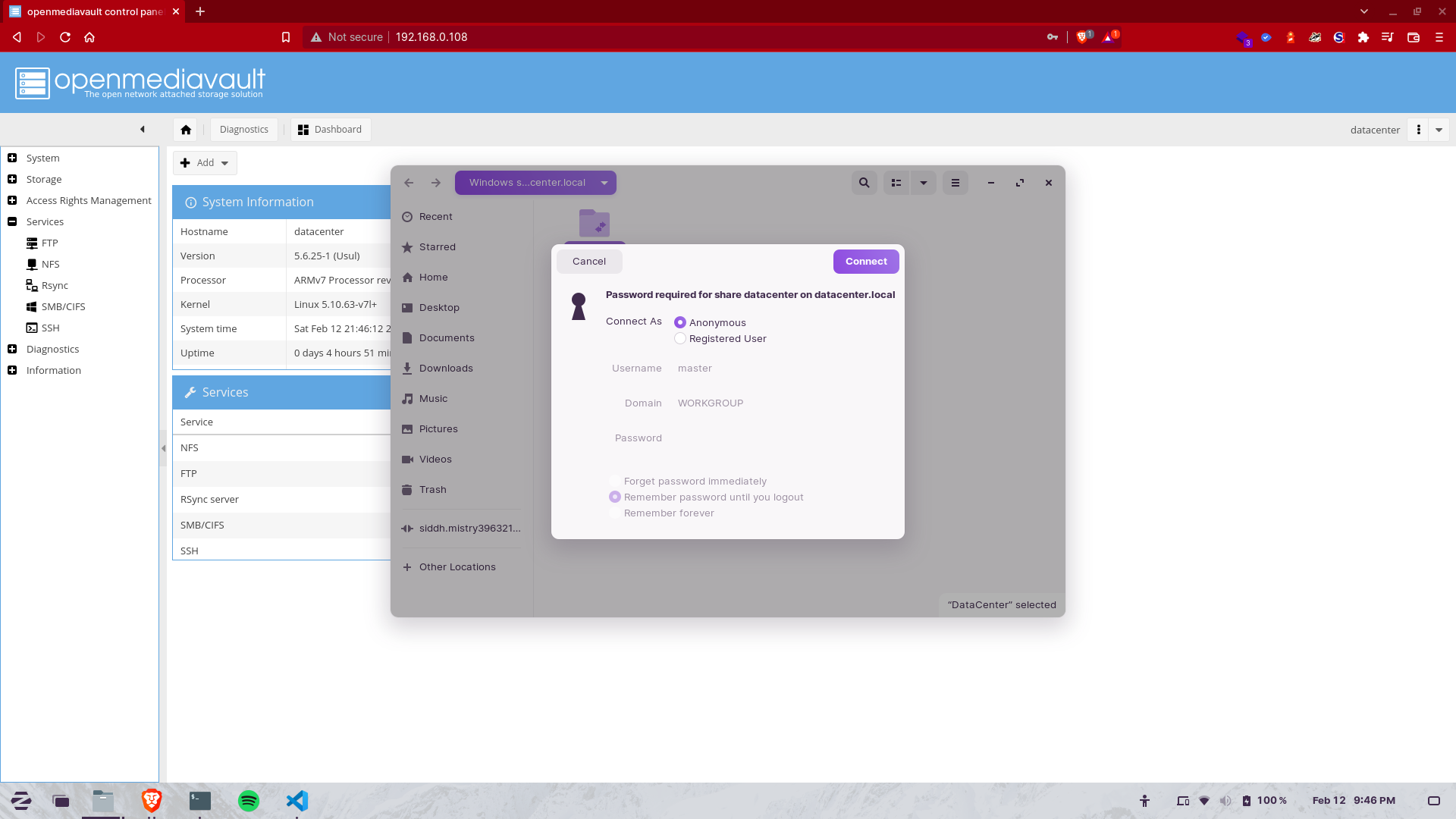

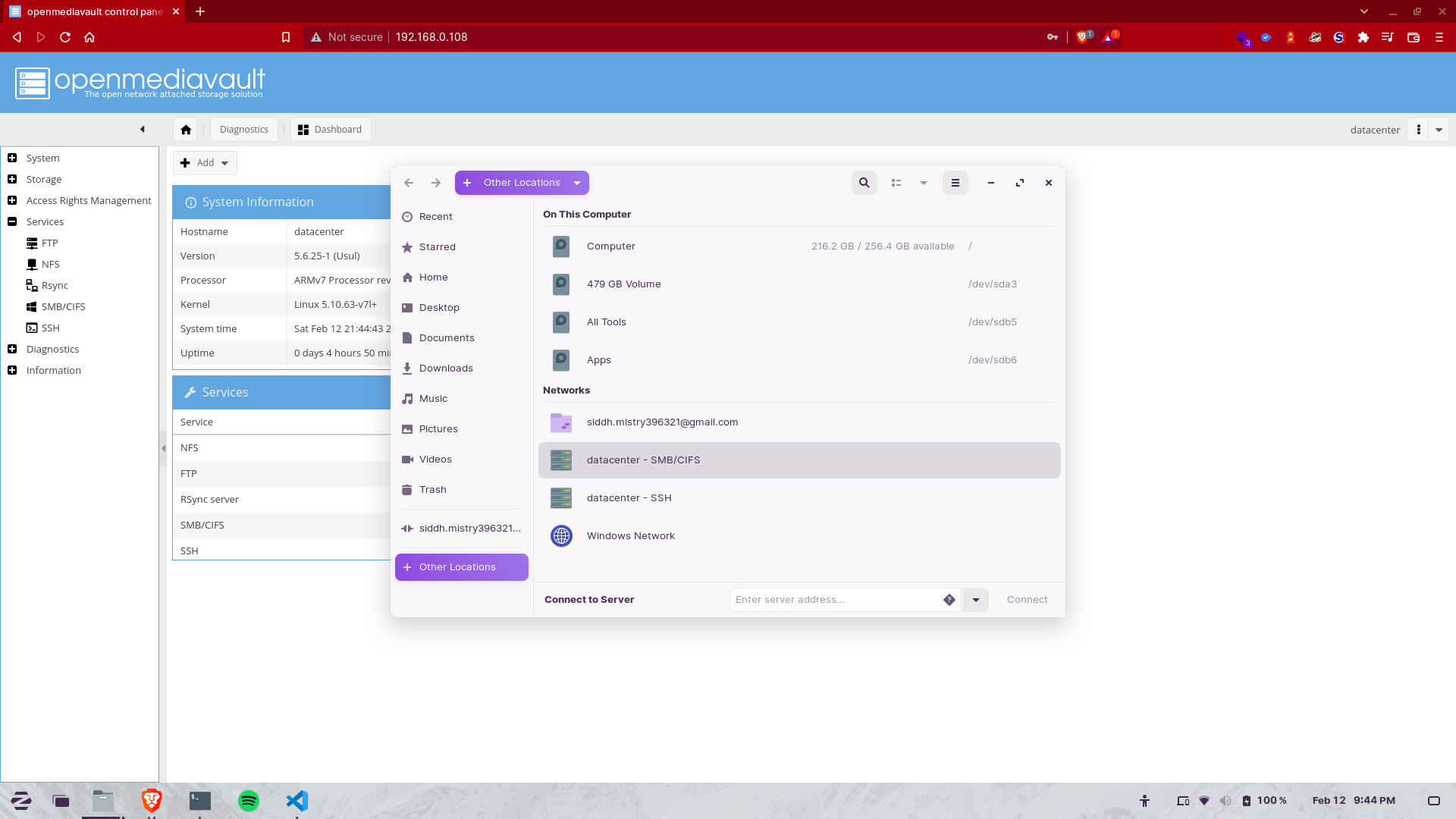

NAS Test
NAS Test

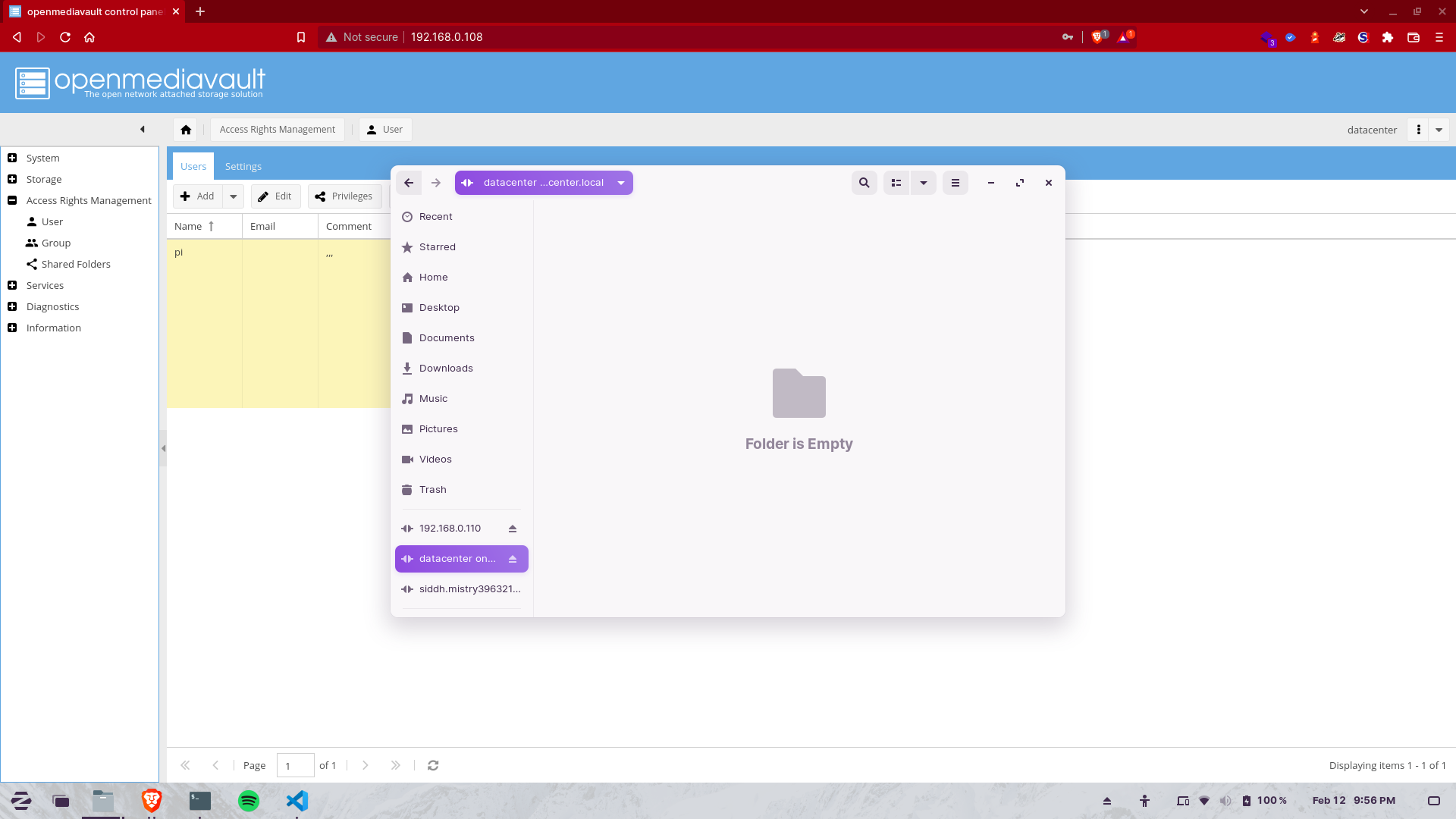

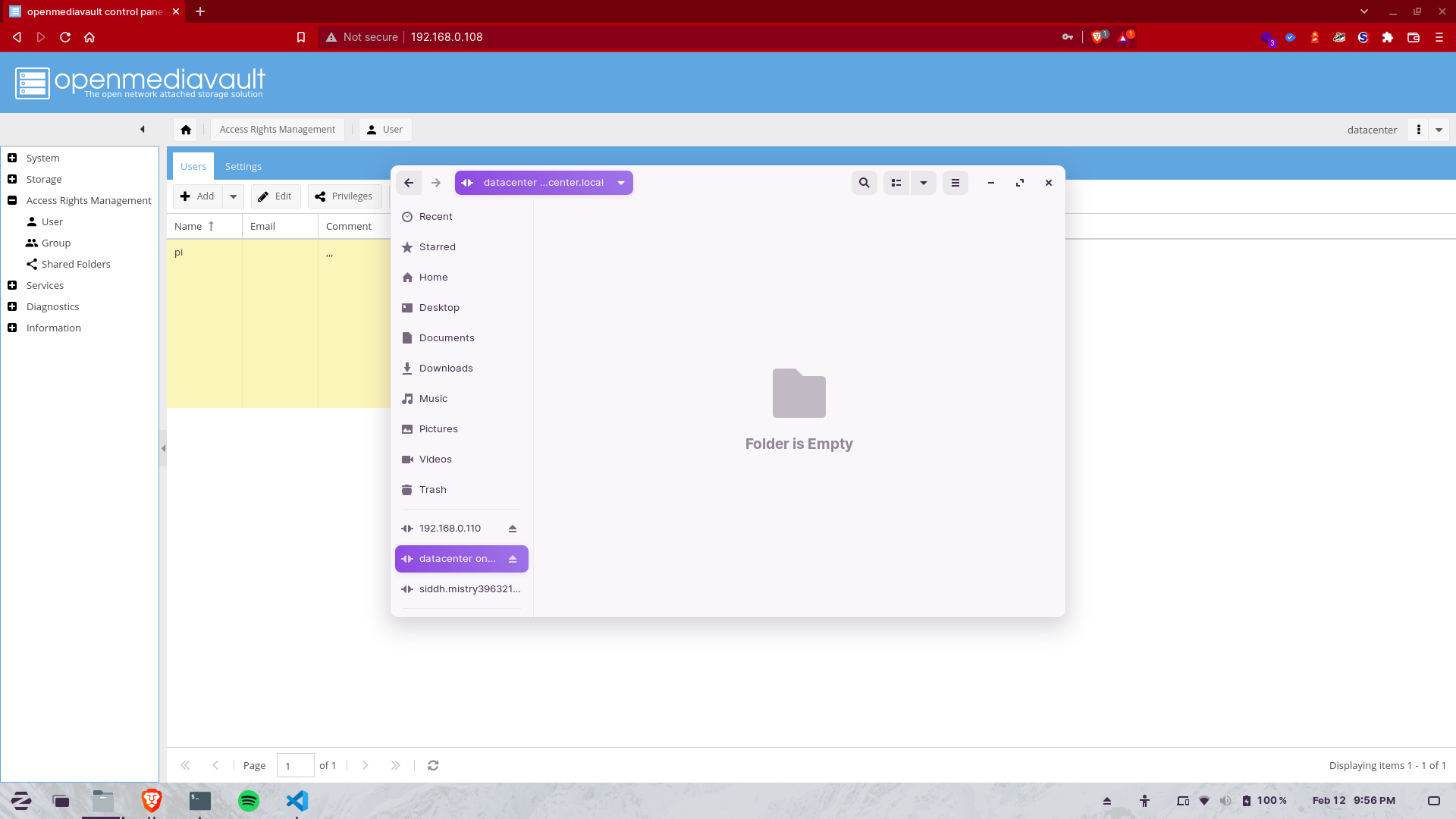

If you try to access it, it will as you for authentication so use your pi account and password which you used while setting up os if it fails then go to Access Rights Management > User, select pi user, and edit it after that add your new password and save it. go back to the folder and try to login back and you will be successfully logged in to NAS Folder

NAS Folder Access

Wi-Fi Setup

If you’re going to use Wi-Fi then connect to a monitor and attach a keyboard then simply type the following command in the terminal to access the raspberry pi configuration setup

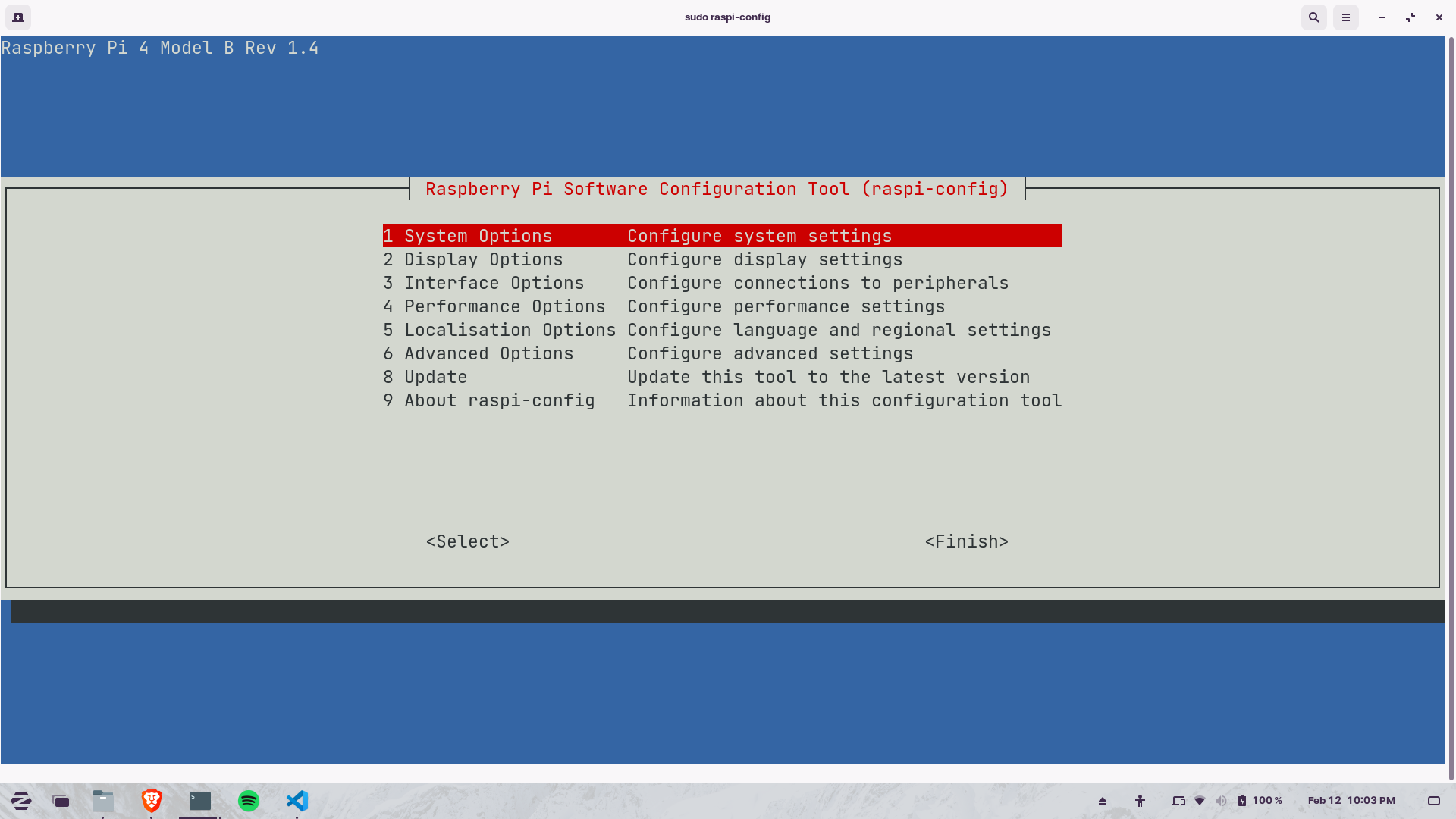

sudo raspi-config

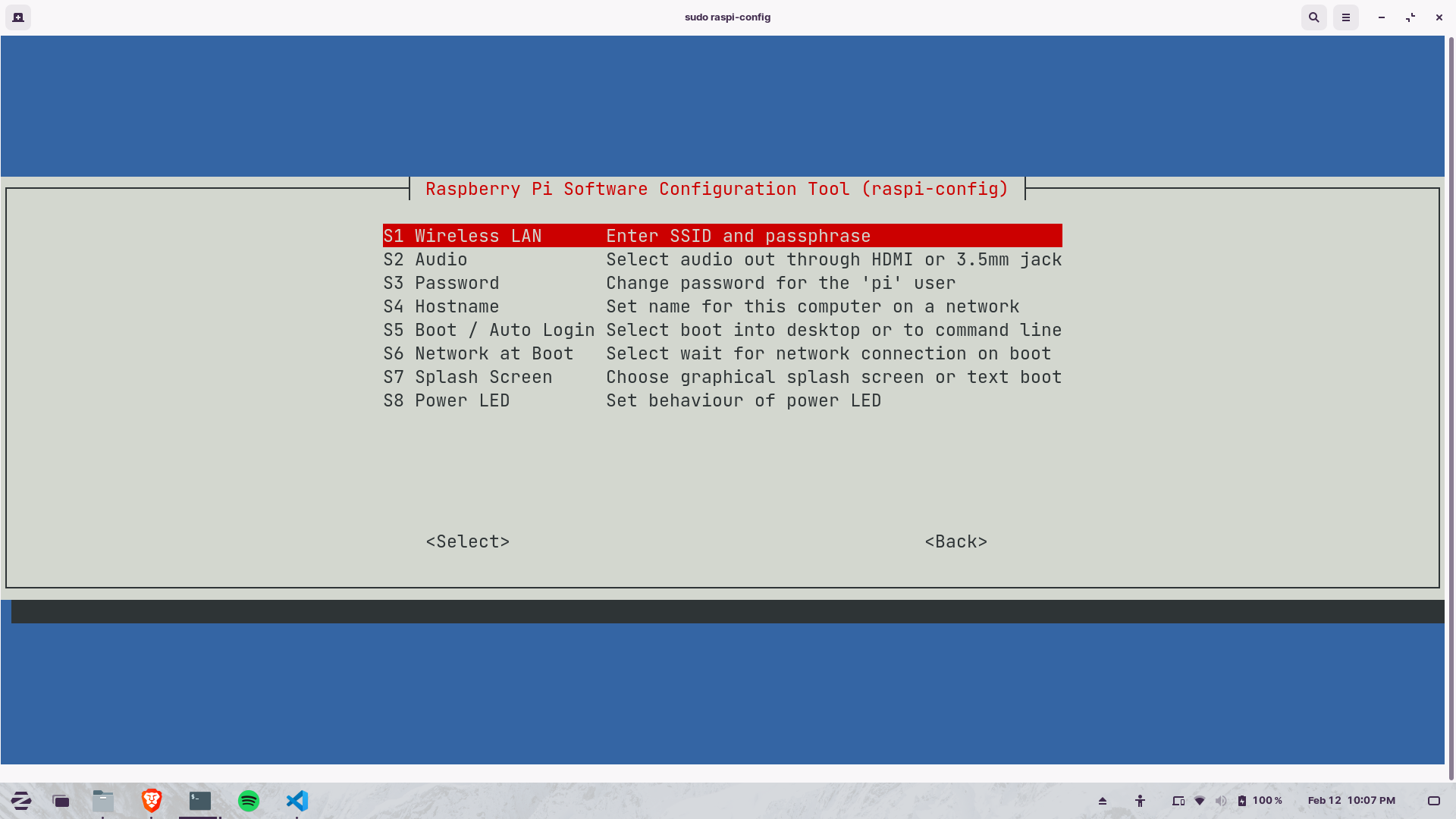

# it will represent you with the screen bellow

Wifi Setup

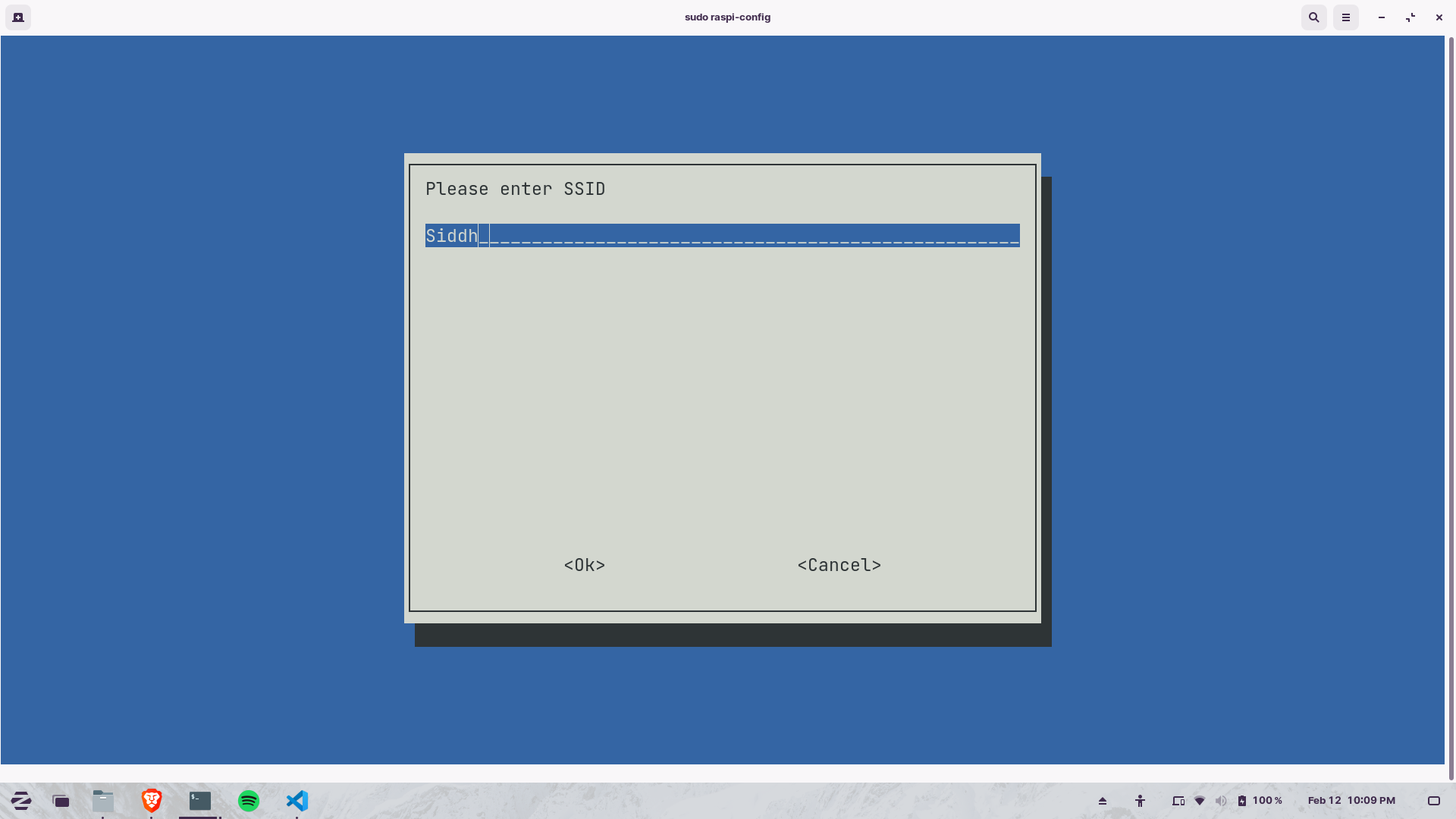

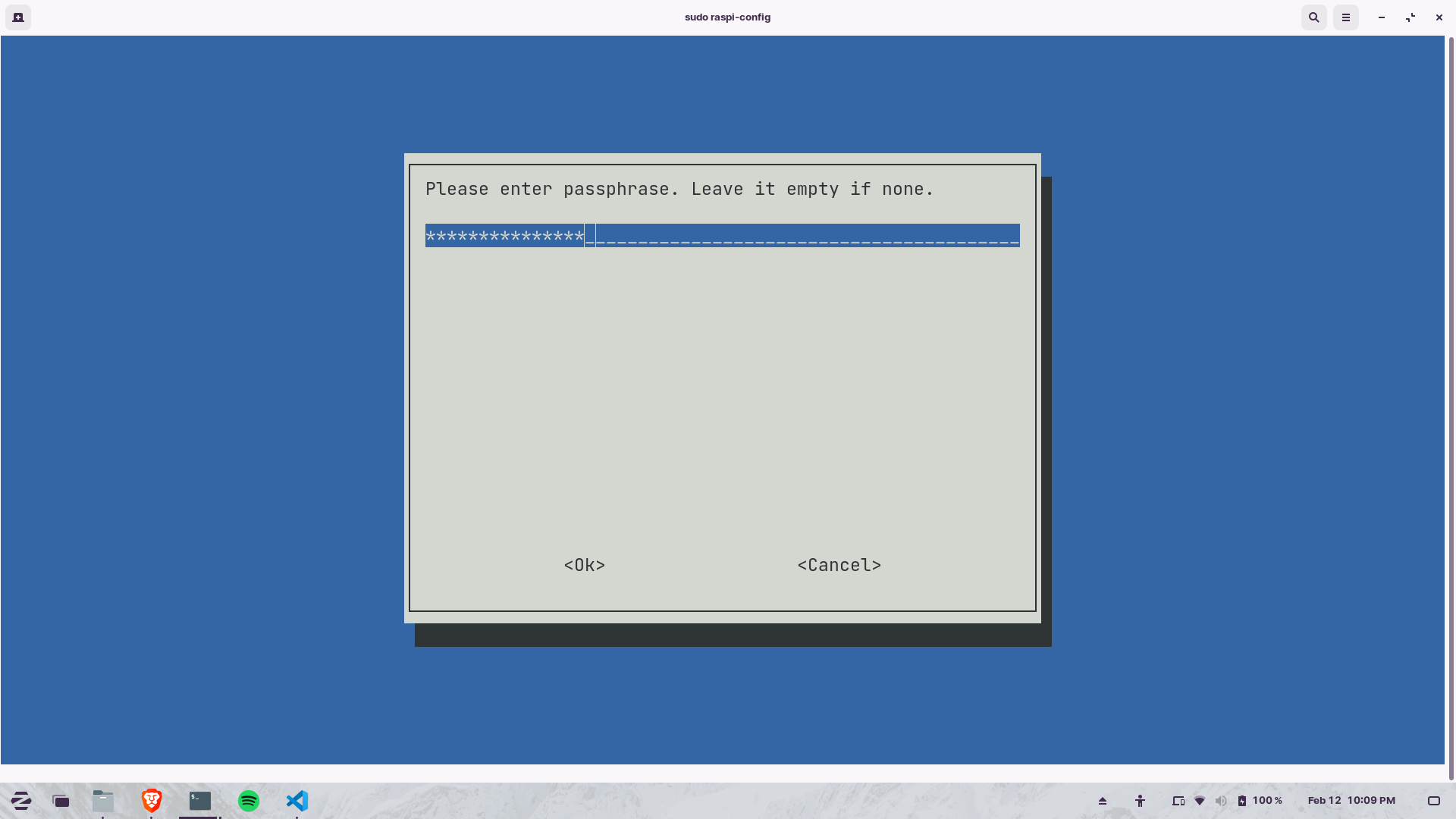

Select System Options > Wireless LAN > Enter your Wi-Fi Name > Enter your Wi-Fi password
Wifi Setup
Wifi Setup
Wifi Setup

After completing all the above steps reboot your system with sudo reboot and bam done.
